TECO is a Taiwanese company which was established on 12 June 1956, starting out as an industrial motor manufacturer. Over the years, it has successfully diversified into a conglomerate with worldwide business operations. Now it is the third biggest medium-voltage motor producer in the world, with around 8% market share and also ranked number 5 in global low-voltage A/C motor market, representing 4% of the world.

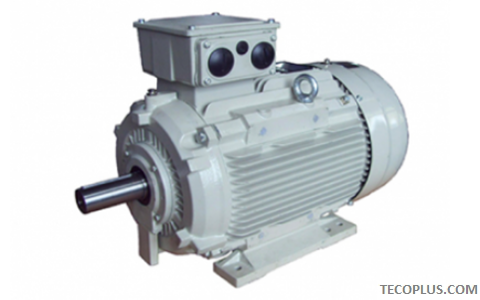

●Kind of Motors：Squirrel - Cage Induction Motors ( SCIM ).
●Design Standards：IEC，GB
●Voltages：380V
●Frequency：50Hz.
●Output Range：0.75kW~315kW
●R.P.M.(Syn.)：3000~1000RPM.(2~6 Poles ).
●Time Duty：Continuous.S1,S.F.: 1.0.
●Frame Nos.：80M ~355L.
●Protection Enclosure：Totally Enclosed ( IP 55 ) .
●Cooling Method：Self External Fan,Surface Cooling (IC 411).
●Mounting：
AEEV4N : Horizontal Foot Mounted B3 ( IM 1001).
AEUV4N : Horizontal Flange Mounted B5 ( IM 3001)
AEEV4N : Horizontal Foot And Flange Mounted B35 ( IM 2001).
AEUV4N : Vertical Flange Mounted,Shaft Down V1 ( IM 3011)
●Environment Conditions:
Place : Shadow，Non-Hazardous. Ambient Temperature : -15~ 40
Relative Humidity : Less Than 90%RH (Non-Condensation)
Altitude : Less Than 1,000 Meters .
●Power Source Conditions: Voltage :土10%, Frequency : +5%，and 10% Max. of Combined Voltageand Frequency. But Frequency Variation Does Not Exceed 5% .
●Method of Starting: Full Voltage Direct On Line or Y -A Starting .
●Drive Method: Belt Service,However, 2 Pole 45 kW and Up ,4、6 Pole F# 280 andAbove Coupling Service is the Way .
●Direction of Rotation: CW According to IEC Definition, Suitable For Bi - Directional Operation .
