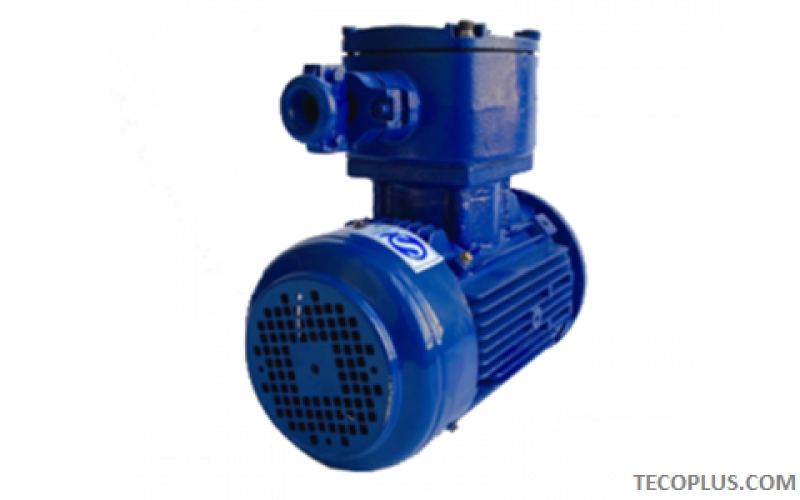

TECO Exd IICT4 Flameproof Motors

Exd IICT4,Exd II(H2),IE3

  • Brand: TECO
  • Type: AFBY/AFBU

Exd IICT4 Flameproof Motors TECHNICAL DATA:

Class: Flameproof Three phase induction motors

Design standard: GB3836.1,GB3836.2,JB/T7565.1

Rated voltage: 380V or other voltage

Rated frequency: 50Hz or 60Hz

Outpupt range: 0.18KW~315KW

Time duty: Continuous SF 1.0 or (SF1.0~1.3))

Frame Nos: 80M~355L

Protection enclosure: Exd IICT4 Gb(F#80~255);Exd II(H2) Gb(F#250~355) IP54、IP55、IP56、IP65、IP66

Cooling method: Self external fan, Surface cooling (IC411)

Stator insulation: Class F insulation system
