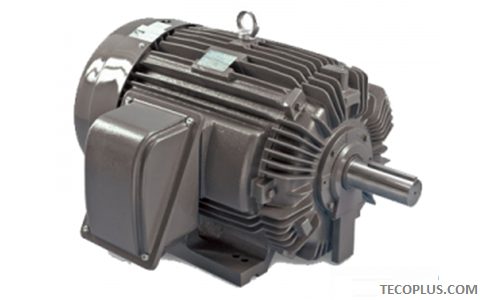

TECO NEMA Explosion-proof Motors

NEMA Premiun, CE、CSA、UL, CSA Certified for Class 1,Dvision B,C,D with Temperatire Code T3C.

  • Brand: TECO
  • Type: AEHH/AEUH

NEMA Explosion-proof Motors TECHNICAL DATA:

Class: Three phase induction motors

Design standard: NEMA MG-1,MG-13,IEEE-841

Rated voltage: 220/380V or other voltage

Rated frequency: 50Hz or 60Hz

Outpupt range: 0.75KW~260KW

Time duty: Continuous S.F1.15 or (SF1.0~1.3)

Frame Nos: 143T~449T

Protection enclosure: Totally enclosed (IP54、IP55)

Cooling method: Self external fan, Surface cooling (IC411)

Stator insulation: Class F insulation system
